Trenchless sewer repair is not a magic solution that works for every damaged lateral, but for the right pipe and the right problem, it eliminates the most disruptive aspect of sewer lateral repair: digging up the yard, driveway, or the sidewalk between your property and the street. For the clay tile laterals common under the tree-lined streets of Mechanicsburg Borough and the older West Shore communities, trenchless methods are often the first option we assess after camera inspection confirms the pipe condition. This guide explains what CIPP lining and pipe bursting actually involve, when each is appropriate, and when traditional excavation is still the right answer.
The Two Primary Trenchless Methods
Cured-in-place pipe (CIPP) lining and pipe bursting are the two established trenchless approaches for residential sewer lateral repair in the West Shore service area. They work differently, apply to different pipe conditions, and produce different results. Understanding what each method actually does clarifies why the camera inspection that precedes any repair recommendation determines which one applies to your specific situation.
How CIPP Lining Works: Step by Step
Camera Inspection and Eligibility Assessment
CIPP lining requires that the existing pipe have enough remaining structural integrity to support the liner during and after installation. A lateral that has completely collapsed in a section cannot receive a liner because there is no pipe wall to compress the liner against. The camera inspection determines eligibility. We look for the percentage of the pipe cross-section still intact, the location and extent of any collapses or severe offsets, and the overall condition of the pipe wall along the lateral run.
Pipe Cleaning Before Liner Insertion
Before a liner can be inserted, the pipe interior must be thoroughly cleaned. Any root mass, debris accumulation, loose pipe fragments, or calcified scale must be removed so the liner contacts and compresses against the existing pipe wall cleanly along its full length. We hydro jet the line at high pressure to clean it, then run a post-cleaning camera pass to confirm the interior is clear and ready for liner installation. If the camera reveals that cleaning has exposed more damage than was visible through the root mass, we reassess the repair approach at that point.

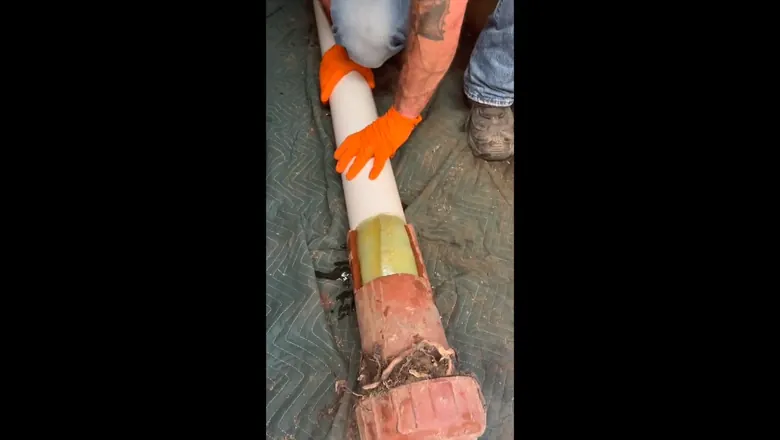

Liner Insertion and Curing
The liner itself is a flexible tube made from felt or fiberglass, saturated with epoxy or polyester resin. It is inserted into the pipe and inflated against the pipe wall using a bladder and air pressure, pressing the resin-saturated material against the interior surface of the host pipe along the full repair length. The resin cures under the applied pressure over a period of several hours, hardening into a rigid structural sleeve inside the original pipe.
Post-Cure Camera Verification
After the liner has cured and the bladder is removed, we run a final camera pass to confirm that the liner is fully seated against the pipe wall along its complete length, that no voids or unseated sections are present, and that the lateral is clear from end to end. We provide you with this post-repair footage as documentation of the completed work.
When CIPP Lining Is the Right Choice on the West Shore
CIPP lining is appropriate for clay tile laterals with root intrusion at the joints, minor to moderate cracks in the pipe wall, offset joints that have not fully separated, and areas of general pipe deterioration that retain enough wall structure to hold the liner. For the laterals under the mature-canopy streets of Old Town Mechanicsburg and North Mechanicsburg, CIPP is often the right choice both because the pipe condition supports it and because the alternative, excavation along the full lateral, would require cutting through established tree roots and restoring the mature landscaping above the pipe.
A single access point at the cleanout location is typically all that is needed for liner insertion. The pipe run from the cleanout to the municipal connection is lined without any disturbance to the yard surface, sidewalk, or street above.
Pipe Bursting: When Lining Is Not the Right Fit
Pipe bursting is used when the existing lateral is too deteriorated to support a liner but trenchless replacement is still feasible. A cone-shaped bursting head is pulled through the existing pipe, fracturing the clay tile outward into the surrounding soil while simultaneously pulling a new high-density polyethylene pipe into position behind it. HDPE is corrosion-resistant, flexible enough to accommodate minor ground movement, and has a smooth interior that prevents root attachment.
Pipe bursting requires access pits at the beginning and end of the section being replaced rather than along the full pipe run. The trench, if any, is limited to the access points rather than spanning the entire lateral length.
When Traditional Excavation Is Still the Right Answer
Not every failed lateral is a candidate for trenchless repair. Complete collapses of long sections, severe grade problems that create standing water in the pipe, and alignment issues that prevent liner insertion or bursting head passage all point toward traditional excavation and replacement with new PVC pipe.
We do not recommend trenchless methods for pipes where the camera shows conditions that make the trenchless result uncertain. A failed CIPP liner installation or a stalled pipe bursting operation creates a more complicated repair situation than a straightforward excavation from the start. The camera footage is what allows us to make this determination with confidence before committing to either approach.
Related service: Trenchless Sewer Repair › Sewer Camera Inspection › Sewer Line Repair ›
Trenchless Repair in Practice: A West Shore Timeline
('A trenchless CIPP lining project for a typical West Shore borough lateral runs one to two days from camera inspection to completed post-cure verification. Day one covers the camera inspection, pipe cleaning via hydro jetting, and post-cleaning camera confirmation. If the cleaning reveals that the pipe is eligible for lining, the liner insertion and curing can often begin the same day on a shorter lateral.', "The curing time depends on the liner material and the curing method. Ambient-cure liners using ambient-temperature resins require several hours at the resin manufacturer's specified minimum temperature. Steam or UV-cured liners reach full cure in a shorter window. During the cure period, drain service to the house is suspended. We coordinate the suspension window with the household before work begins so that it falls at the least disruptive time of day.", 'After curing, the bladder is removed, the liner end is trimmed at the cleanout, and the post-cure camera pass confirms the completed installation. The service lateral is restored to use the same day in most cases. We provide the homeowner with the pre-repair and post-repair camera footage as documentation of the baseline condition and the completed repair for their records.')
For homeowners on the tree-lined streets of Old Town Mechanicsburg or North Mechanicsburg, the ability to complete a sewer lateral repair without disturbing the yard, the mature landscaping, or the brick sidewalk surfaces is a significant practical benefit that justifies scheduling the camera inspection to confirm eligibility before assuming excavation is the only path forward.
