A clay tile sewer lateral is a pipe made from kiln-fired clay, shaped into short sections that interlock without adhesive, laid from your home's foundation to the municipal sewer connection at the street. In the Borough of Mechanicsburg and the older West Shore communities, clay tile was the standard lateral material from roughly the 1880s through the late 1950s. If your Mechanicsburg Borough home was built before 1960 and has never had the sewer lateral inspected or replaced, there is a high probability that clay tile is in the ground beneath your yard right now.
What Clay Tile Pipe Is and How Long It Was Supposed to Last
Clay tile sewer pipe was a reliable material for its era. When installed correctly in stable soil at consistent grades, a clay tile lateral could function for sixty to eighty years without major failure. Many of the laterals installed in Mechanicsburg Borough housing from the 1920s through the 1950s did exactly that, functioning without drama until they began to age past that mark. At that point, the combination of age, ground movement, and root pressure creates a very different situation.
The clay itself does not corrode the way galvanized steel supply pipe does. The problem is the joint. Clay tile sections interlock at the ends with a hub-and-spigot design, and those joints are sealed with mortar or with the tight fit of the interlocking sections alone. They are not welded, glued, or bonded in any way that creates a continuous sealed pipe. Over time, the mortar degrades, the physical fit between sections loosens from ground movement, and the joint becomes a gap.
Why Clay Tile Fails in Mechanicsburg Borough Homes
Root Intrusion from the Mature Street Canopy
The tree-lined streets of Old Town Mechanicsburg and North Mechanicsburg are a defining characteristic of the neighborhood. The mature oak, sycamore, maple, and elm trees along these streets were planted in the early to mid-20th century, and their root systems have been growing toward moisture sources in the soil for seventy and eighty years.
A sewer lateral carries moisture-laden water with every flush, and the clay tile joint gaps that open as the mortar degrades release a small amount of that moisture into the surrounding soil. Root systems detect that moisture gradient and grow toward it. Once a root tip finds a joint gap, even a very small one, it enters the pipe and begins growing in the moisture-rich environment inside the lateral.
Early-stage root infiltration looks like fine hair-like strands extending from one point on the pipe wall. This stage may not cause noticeable drain symptoms. Over months and years, the root mass grows denser, catches debris on its edges, and eventually reduces the flow capacity of the pipe significantly. At the advanced stage, roots fill the pipe cross-section entirely and the lateral stops draining effectively.
Freeze-Thaw Joint Separation
Cumberland Valley winters are real. Average overnight lows in January sit in the upper teens Fahrenheit, and single-digit lows occur during the hard cold snaps that arrive each winter. When water in the soil freezes and expands, the ground moves slightly. A clay tile lateral below the frost line has some protection from direct freeze-thaw effects, but the soil movement in the zone above and around it creates stress at the joint points over many seasonal cycles.
After decades of annual stress, rigid clay tile joints that were tight at installation develop small separation gaps. These gaps may be only a few millimeters initially, but they are enough for root entry and enough to allow groundwater to infiltrate the pipe during wet periods.
Age and the Pipe Wall
Clay tile itself is durable, but not permanent. The clay walls of a lateral installed in the 1930s are now approaching or past ninety years old. Repeated stress from ground movement, root penetration, and the weight of soil above the pipe takes its toll over time. Pipe walls can thin at points of chronic stress, and sections can crack or fracture. A cracked section that is still in position shows up on camera as a structural failure that may not yet be causing a backup but will continue to worsen.
How to Know If Your Lateral Is Failing
The most consistent early symptom of clay tile lateral failure is slow drainage in multiple fixtures at the same time. If only one drain is slow, the problem is likely within the house in that fixture's branch line. When multiple fixtures drain slowly simultaneously, and particularly when a floor drain gurgles when a toilet flushes or a tub drains, the problem is in the main line or the lateral.
Later-stage symptoms include recurring backups that clear with augering but return within weeks, sewage odors from floor drains or at grade level outside the house, and wet or sunken patches in the yard above the lateral route. If any of these symptoms appear in a Mechanicsburg Borough home built before 1960, the lateral deserves a camera inspection before any cleaning or repair work is scheduled.
Repair Options for a Failed Clay Tile Lateral
CIPP Lining (Trenchless)

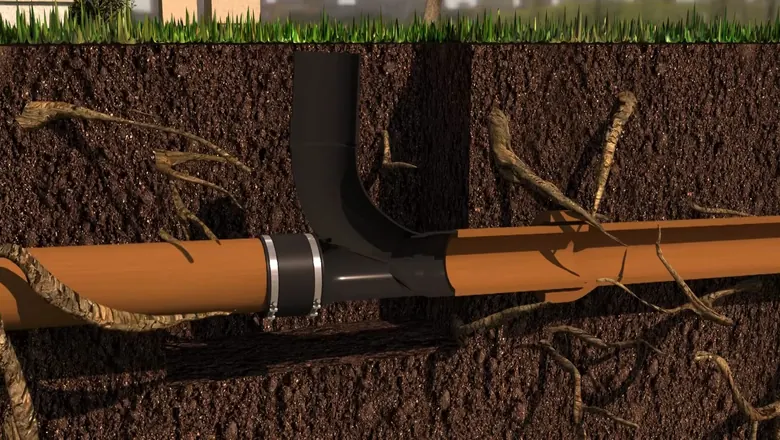

Cured-in-place pipe lining inserts a flexible liner saturated with resin into the existing pipe and cures it in place, creating a smooth-walled sleeve inside the old clay host pipe. The result is effectively a new pipe inside the old one. Landscaping, driveways, sidewalks, and the root systems of the mature street trees that caused the intrusion in the first place are all left undisturbed. CIPP is the preferred option for Old Town and North Mechanicsburg laterals where the camera shows adequate remaining pipe wall integrity to support the liner.
Pipe Bursting
When the clay tile is too deteriorated to support a liner, pipe bursting pulls a bursting head through the old pipe, fracturing it outward into the surrounding soil while pulling a new HDPE pipe into position behind it. This replaces the pipe without requiring a trench along the full lateral length, though it does require small access pits at each end.

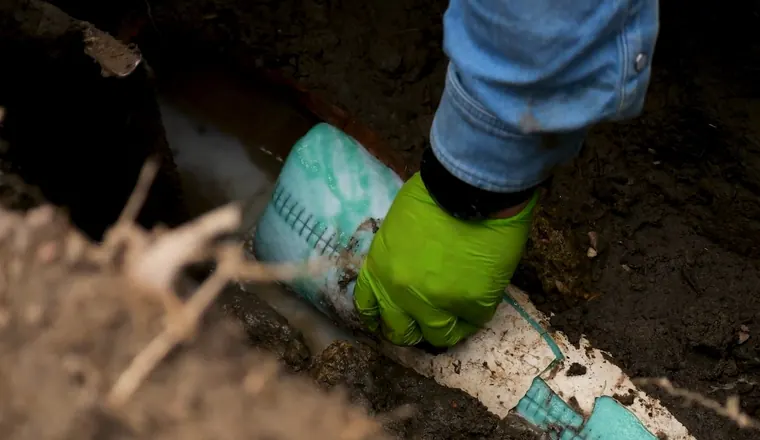

Traditional Excavation
When sections of the lateral have partially collapsed or the pipe condition is too poor for either trenchless method, traditional excavation along the lateral route and replacement with new PVC pipe is the right answer. This is more disruptive to the yard but provides a completely new pipe with a design life of fifty or more years.
The Step That Cannot Be Skipped: Camera Inspection First
None of the repair options above can be specified correctly without camera footage of the pipe. The footage determines whether the remaining pipe wall supports lining, whether bursting is viable, where any collapses or severe offsets are located, and what the full extent of root intrusion looks like. A repair recommendation made without camera inspection is a guess.
We run a camera through every Mechanicsburg Borough lateral before recommending anything, and we show you the footage before presenting a repair option and price. The time between a symptom appearing and a lateral that has collapsed completely is often shorter than homeowners expect in pre-1960 Mechanicsburg housing. A camera inspection scheduled after the first backup is almost always better than waiting for the second.
